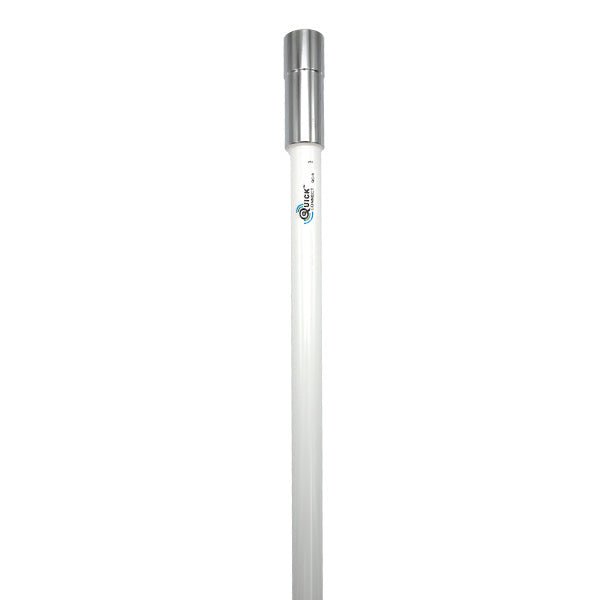

SHAKESPEARE VHF 8FT QC-8-T QUICKCONNECT 6DB

Shakespeare VHF 8' QuickConnect™ 6dB f/QCM Series Mounts Product Description

QuickConnect ™ antennas stem from the popularity of the quick-connecting feature on Shakespeare (R)’s high-end Phase III marine antennas. The QuickConnect ™ product line brings you the ease of connecting and disconnecting your marine antenna in a series of entry-level antennas.

Shakespeare QC8T Attributes

• Type: Monopole
• Length: 8 Feet
• Gain: 6 dBi
• Mounting Type: Ratchet/ Ratchet Rail Mount
• Color: White
• Material: Fiberglass

Shakespeare QC8T Features & Benefits

• QuickConnect ™ System Provides Screw Or Unscrew Features To Quickly Disconnect Or Connect Antenna
• High-Quality Connection Generates No Noise Caused By Vibrations
• Splash Protection Cap Protects The Connector On The Mount When Antenna Is Disconnected
• Connector Is An Easy Crimp-On Type Of Connector
• Base Connector Included For Use With QuickConnect ™ Mounts Only
• Maximum Input Power Of 50 Watt
• Limited 2 Year Warranty

VHF 8' QuickConnect™ 6dB for QCM Series Mounts

QuickConnect™ antennas stem from the popularity of the quick connecting feature on Shakespeare's high-end Phase III® marine antennas, the QuickConnect™ product line brings you the ease of connecting and disconnecting your marine antenna in a more affordable line-up.

Features:

• QuickConnect™ System - Screw or unscrew the antenna to disconnect or connect
• Splash Protection Cap - Protects the connector on the mount when the antenna is disconnected
• Centerpin® PL-259 Connector - An easy crimp-on connector
• Base connector included for use with QuickConnect™ mounts only
• Single Section antennas with VSWR of <1.5:1 at 156.8 MHz
• Maximum input power of 50W
• The bandwidth of 5 MHz within 2.0:1 VSWR
• Does not contain a built-in DC ground connection
